LiFePO4 Battery Energy Storage Solutions for High Voltage UPS Systems (100V-600V)

LiFePO4 Battery Energy Storage Solutions for High Voltage UPS Systems (100V-600V)

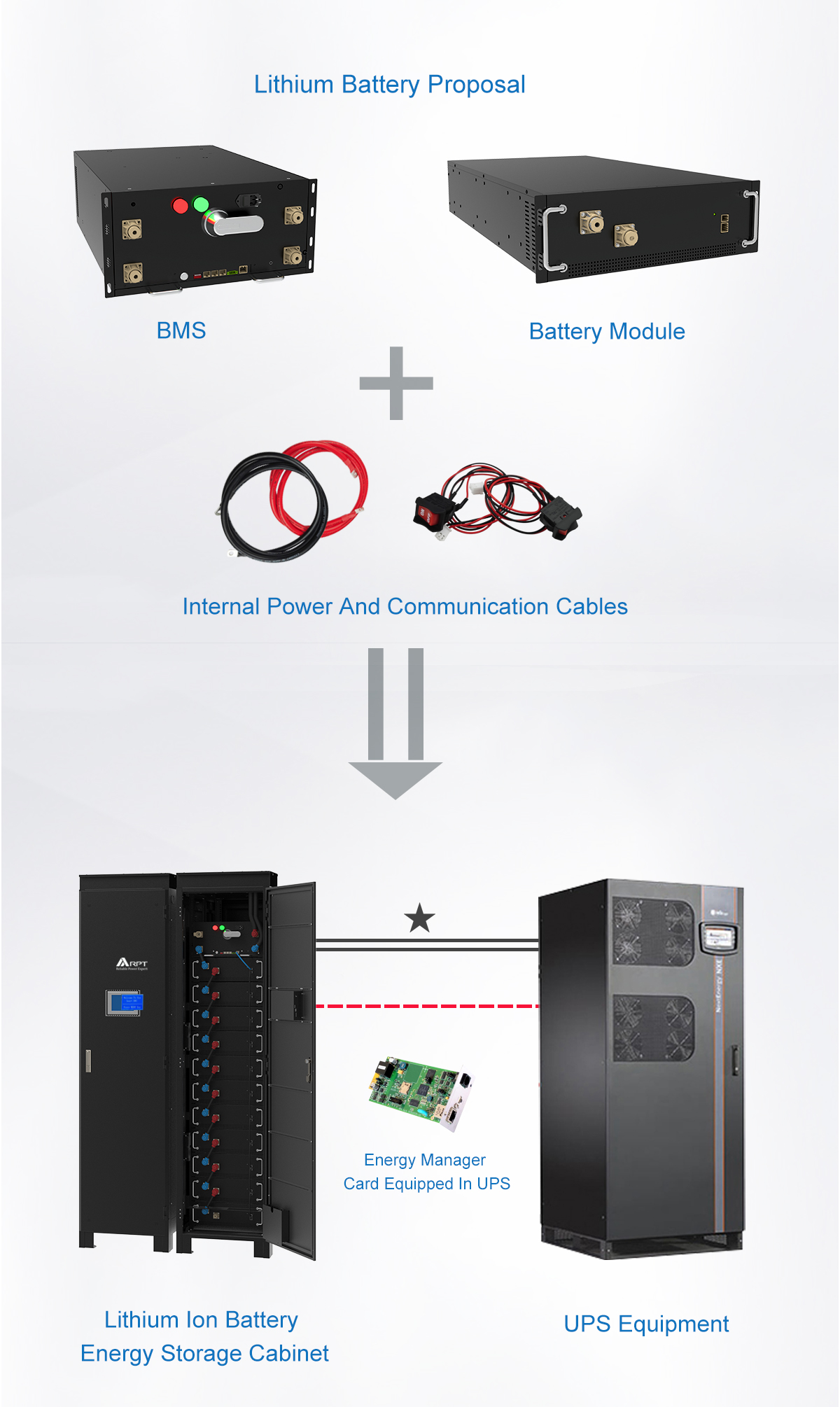

RPT's LiFePO4 Battery Energy Storage Solutions tailored specifically for High Voltage UPS Systems, ranging from 100V to 600V. Engineered for reliability and efficiency, these solutions offer seamless compatibility and long-term performance for critical power backup needs. With a three-stage structure including module-level, cabinet-level, and master control management systems, our LiFePO4 batteries ensure optimal monitoring, data analysis, and communication throughout the UPS network. Trust in RPT's expertise to deliver robust and dependable energy storage solutions for high voltage UPS applications, ensuring uninterrupted power supply and peace of mind during critical operations.

Product Features

Parameter

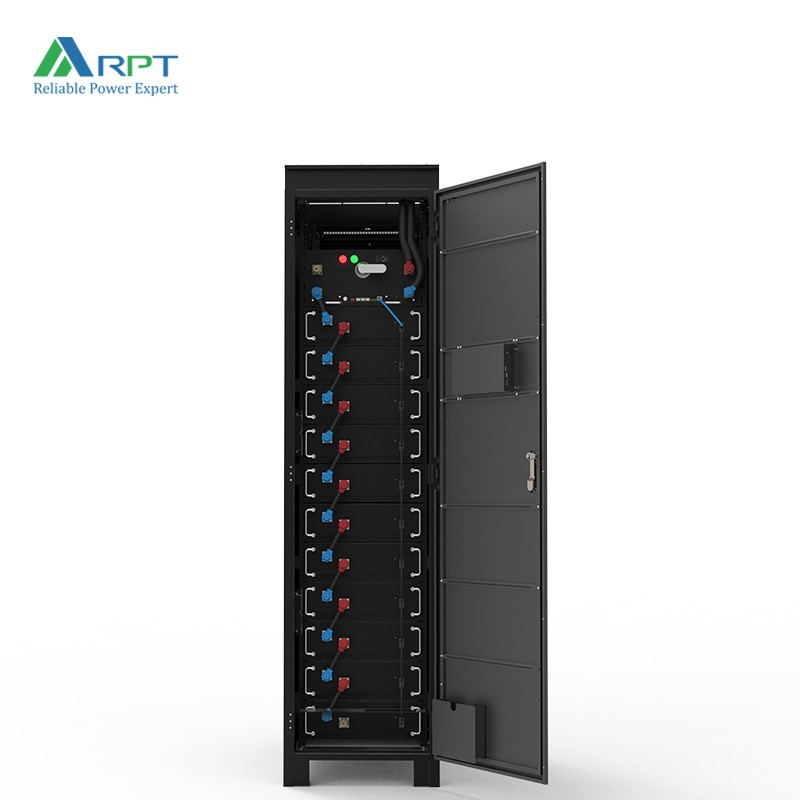

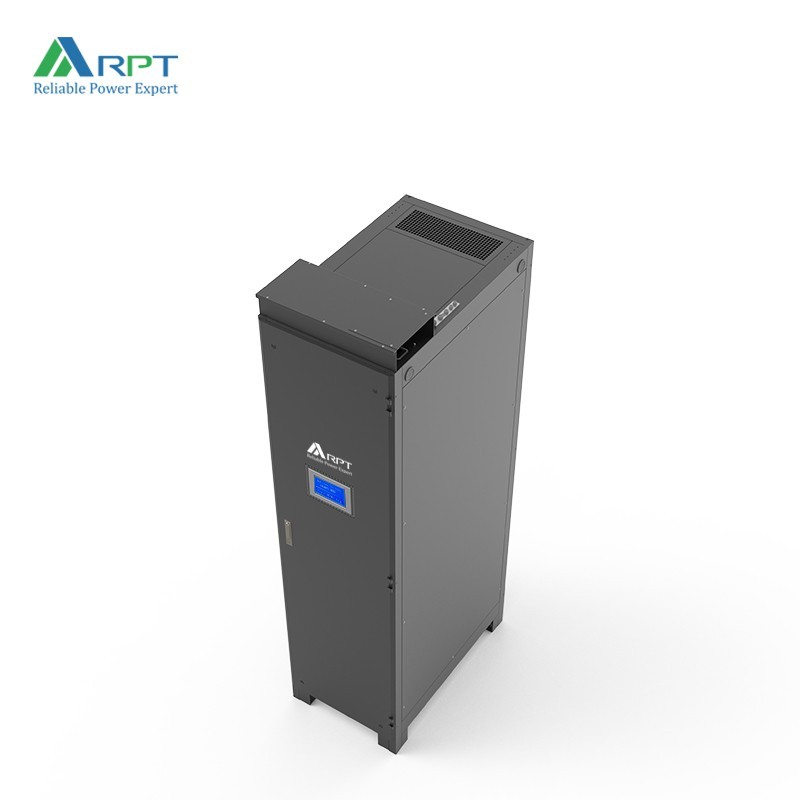

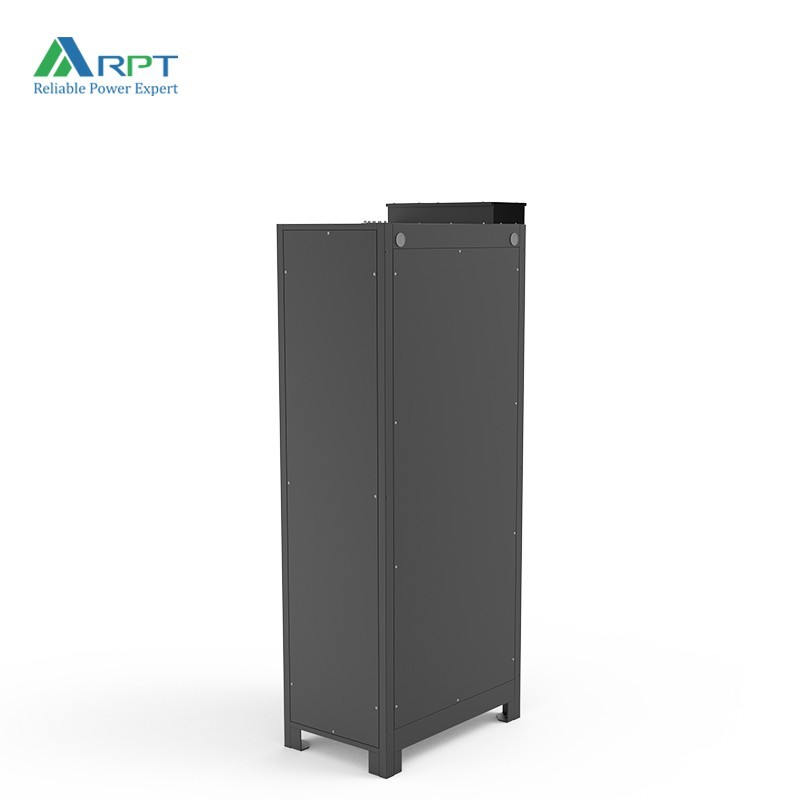

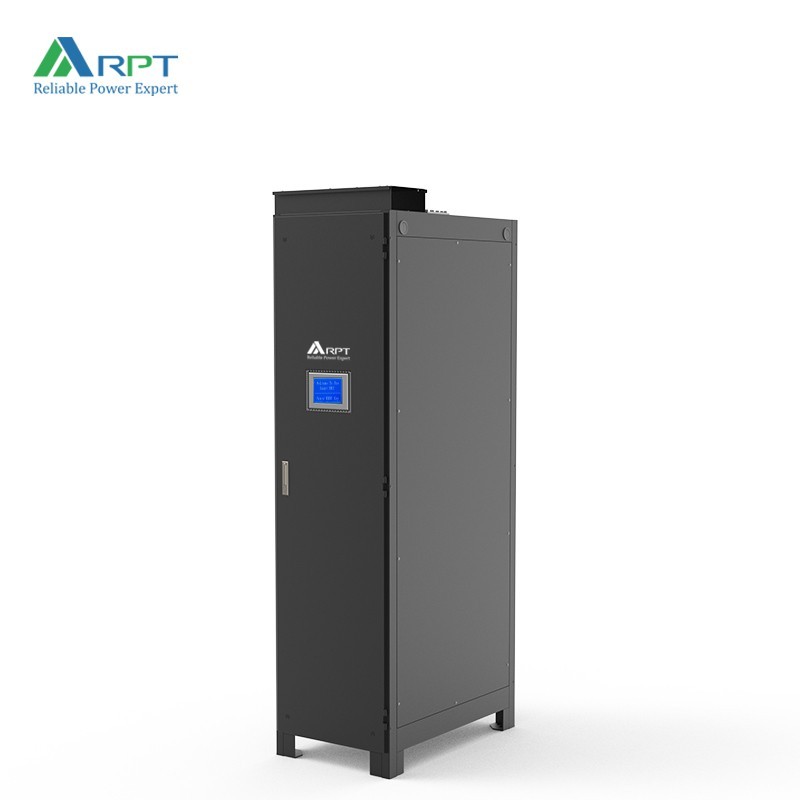

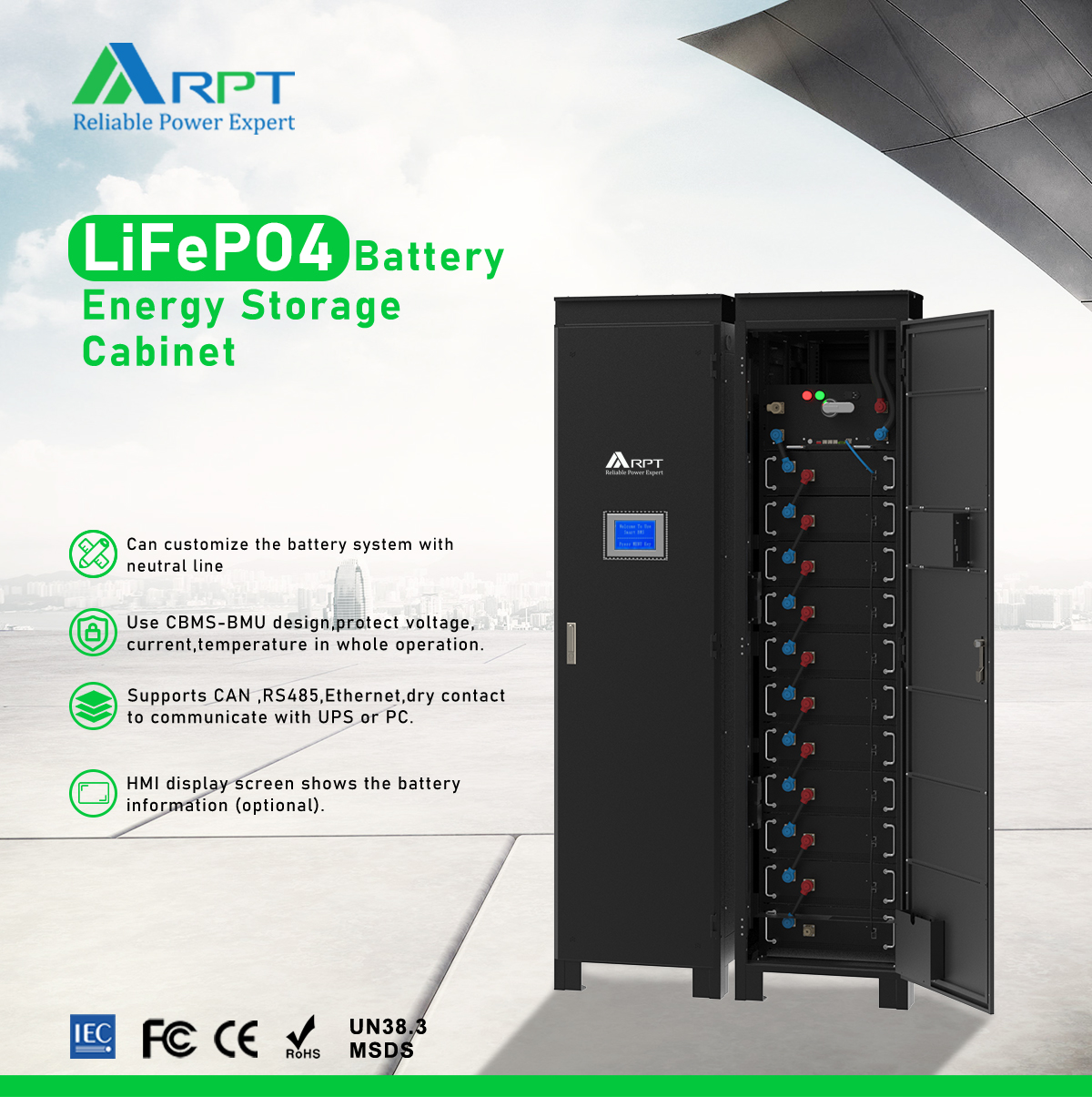

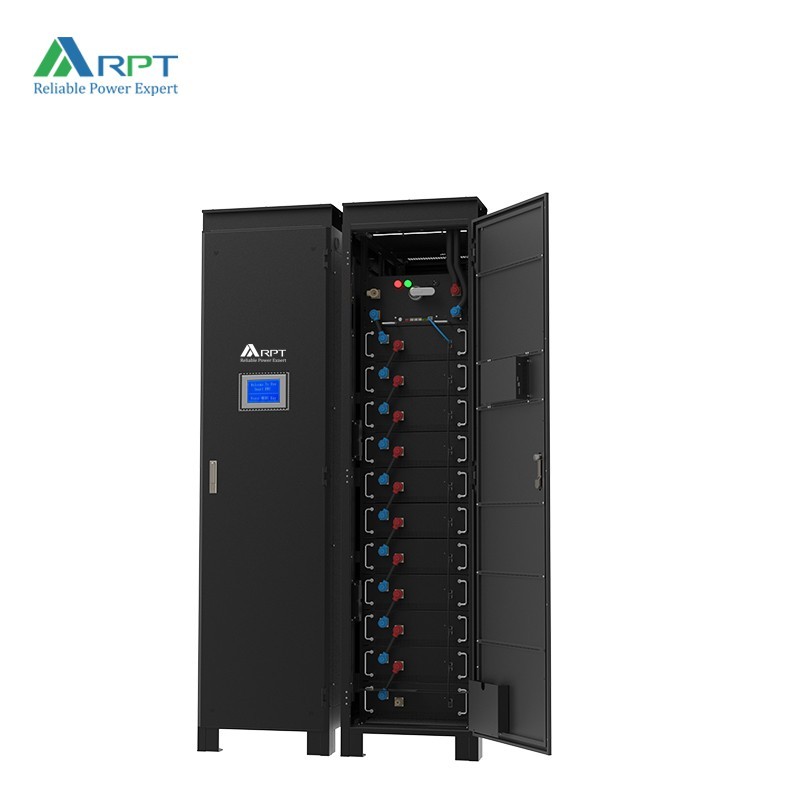

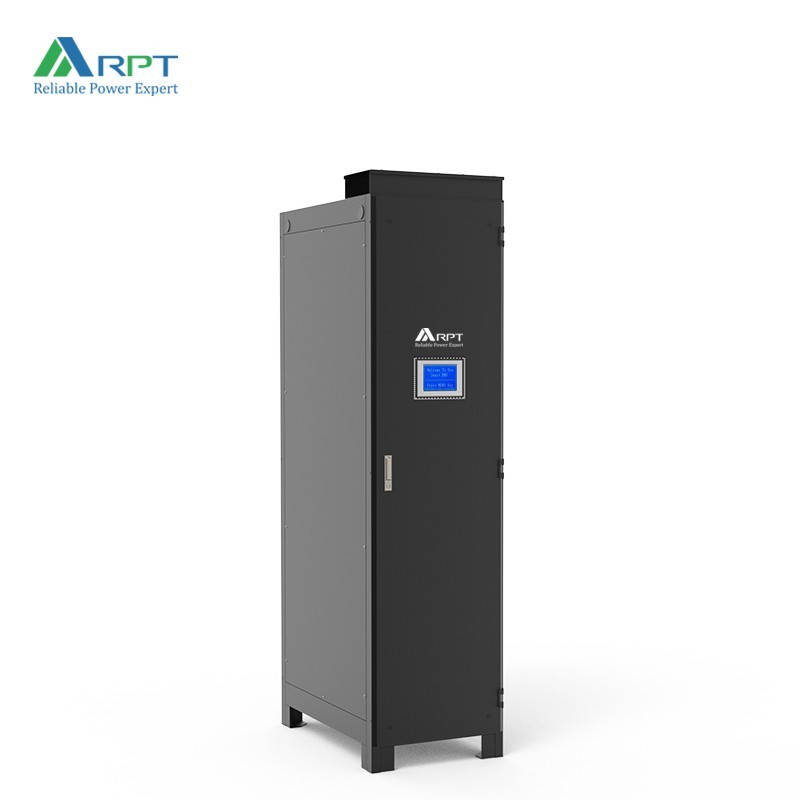

High voltage LiFePO4 battery energy storage cabinet
Model	Rated Voltage	Rated Capacity	Dimension (WDH)	Maximum Continuous Discharge Current	Standard Charging Voltage Range	Operating Temperature	Recommended Charge Method	Cut-Off Voltage	Protection Class
192V50AH	192V	50Ah	60010001200	50A	207V~210V	Charging: 0°C~55°C Discharging: -20°C~55°C	CC: 0.2C to 210V CV: 210V Floating: 207V	168V~171V	IP20
192V100AH	192V	100Ah	6008001200	100A	207V~210V	Charging: 0°C~55°C Discharging: -20°C~55°C	CC: 0.2C to 210V CV: 210V Floating: 207V	168V~171V	IP20
192V200	192V	200Ah	8008501500	200A	207V~210V	Charging: 0°C~55°C Discharging: -20°C~55°C	CC: 0.2C to 210V CV: 210V Floating: 207V	168V~171V	IP20
384V100	384V	100Ah	6008002000	200A	414V~420V	Charging: 0°C~55°C Discharging: -20°C~55°C	CC: 0.2C to 420V CV: 414V Floating: 414V	338V	IP20
512V200	512V	200Ah	60010002800	200A	544V~552V	Charging: 0°C~55°C Discharging: -20°C~55°C	CC: 0.2C to 552V CV: 552V Floating: 544V	448V	IP20
