Industrial and Commercial High Voltage Lithium Battery Energy Storage Solution

Industrial and Commercial High Voltage Lithium Battery Energy Storage Solution

Our Industrial and Commercial High Voltage Lithium Battery Energy Storage Solution, powered by advanced lithium battery technology, offers a robust and scalable solution for businesses seeking efficient energy management. With a focus on reliability and performance, our solution seamlessly integrates into industrial and commercial settings, providing a dependable backup power source and optimizing energy usage during peak demand periods. Its high voltage design ensures enhanced efficiency and capacity, while intelligent monitoring and control systems allow for seamless integration with existing infrastructure. Experience the benefits of increased energy resilience, reduced operational costs, and enhanced sustainability with our High Voltage Lithium Battery Energy Storage Solution.

Parameter

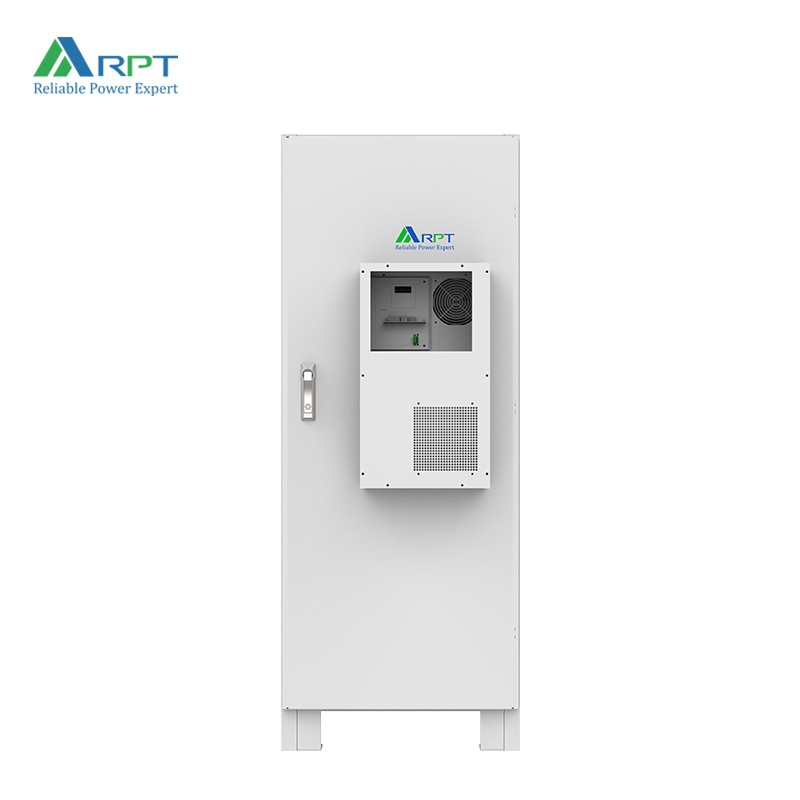

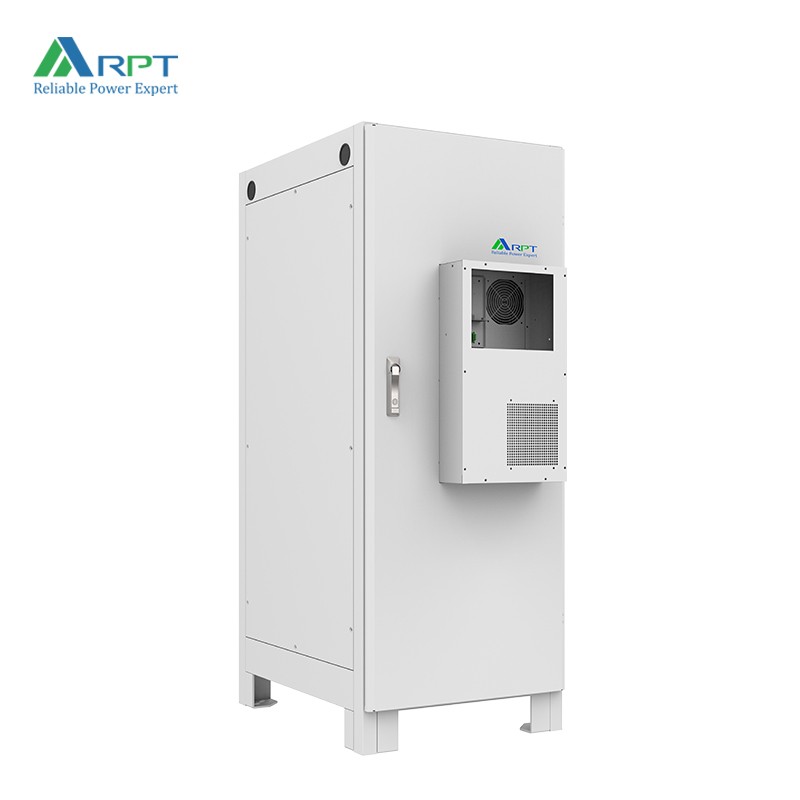

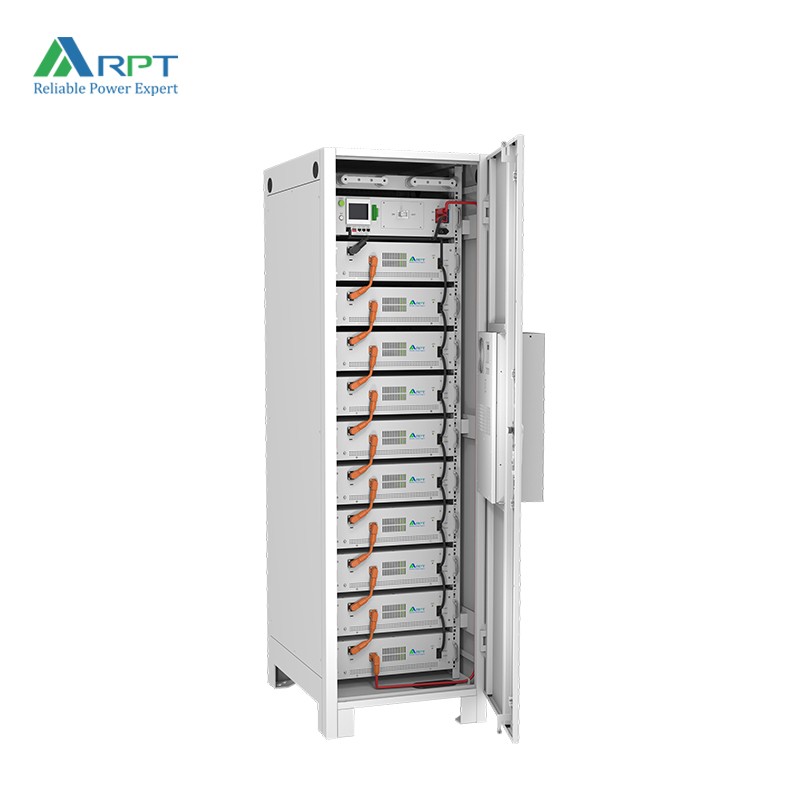

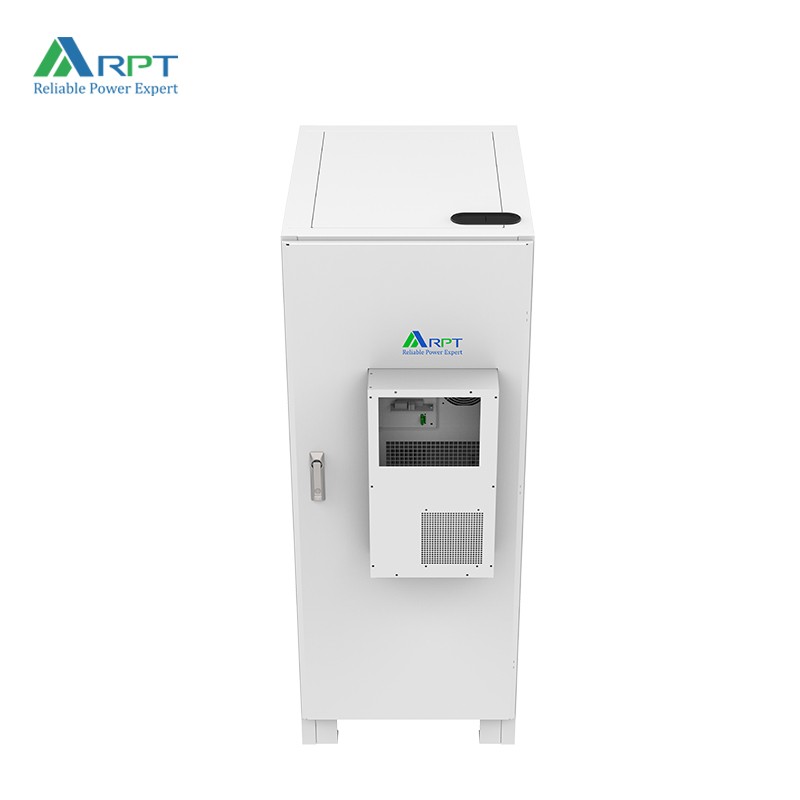

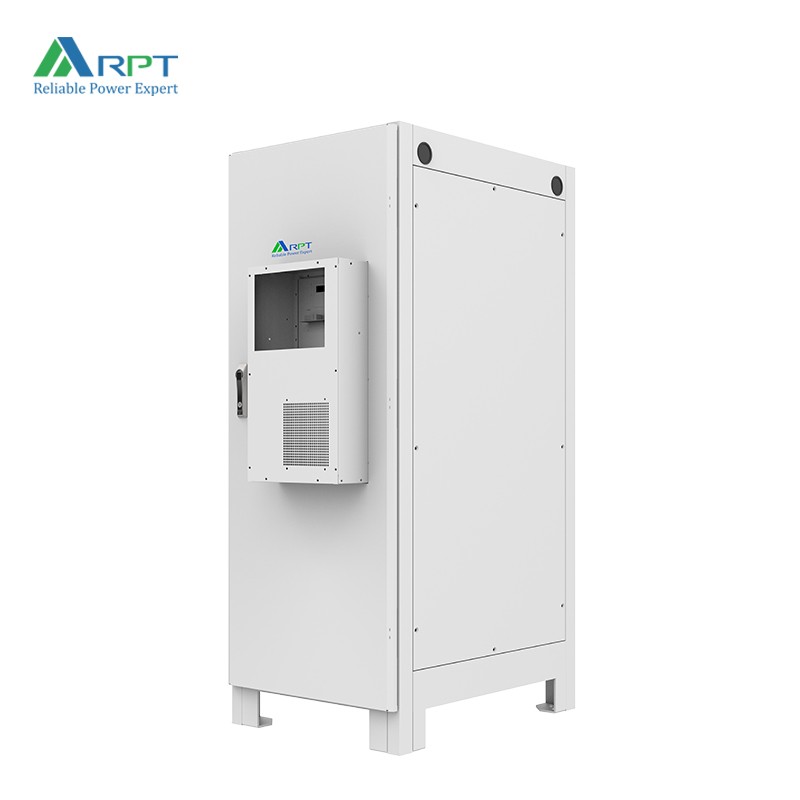

High voltage LiFePO4 battery energy storage cabinet
Model	Rated Voltage	Rated Capacity	Dimension (WDH)	Maximum Continuous Discharge Current	Standard Charging Voltage Range	Operating Temperature	Recommended Charge Method	Cut-Off Voltage	Protection Class
192V50AH	192V	50Ah	600mm1000mm1200mm	50A	207V~210V	Charging: 0°C~55°C Discharging: -20°C~55°C	CC: 0.2C to 210V CV: 210V Floating: 207V	168V~171V	IP20
192V100AH	192V	100Ah	600mm800mm1200mm	100A	207V~210V	Charging: 0°C~55°C Discharging: -20°C~55°C	CC: 0.2C to 210V CV: 210V Floating: 207V	168V~171V	IP20
192V200AH	192V	200Ah	800mm850mm1500mm	200A	207V~210V	Charging: 0°C~55°C Discharging: -20°C~55°C	CC: 0.2C to 210V CV: 210V Floating: 207V	168V~171V	IP20
384V100AH	384V	100Ah	600mm800mm2000mm	200A	414V~420V	Charging: 0°C~55°C Discharging: -20°C~55°C	CC: 0.2C to 420V CV: 414V Floating: 414V	338V	IP20
512V200AH	512V	200Ah	600mm1000mm2800mm	200A	544V~552V	Charging: 0°C~55°C Discharging: -20°C~55°C	CC: 0.2C to 552V CV: 552V Floating: 544V	448V	IP20
